Retort Sterilizer (Auto Clave)
Place of Origin: |
China |
Brand Name: |
Weishu |
Model Number: |
WS-BS |
Raw materials: |
SUS304/SUS316L |
Certification: |
CE |
Minimum Order Quantity: |
1 |
Packaging Details: |
Wooden case |
Delivery Time: |
30days |
Payment Terms: |
TT/LC |
- Description
- Working Principle
- Application
- Features
- Specifications
- Recommended Products
Description

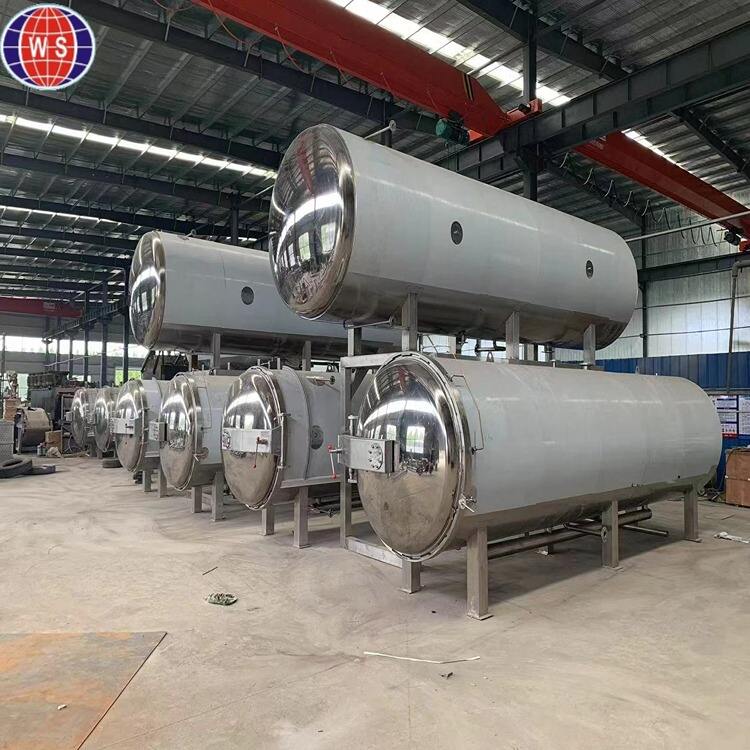

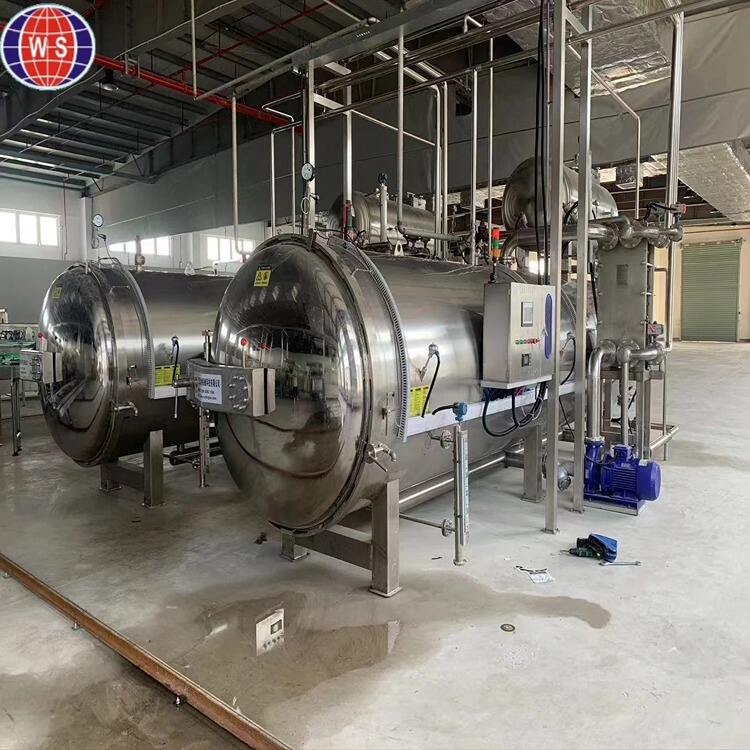

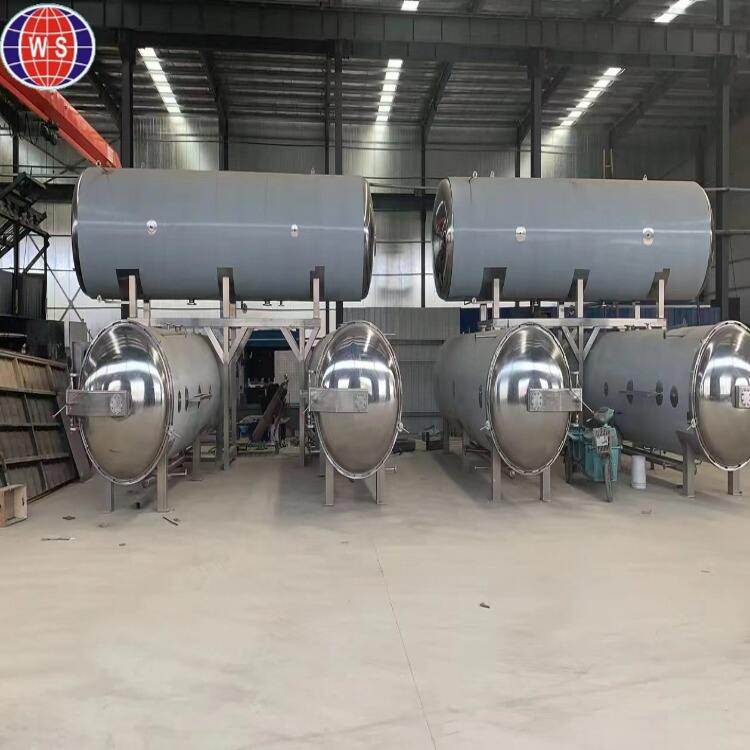

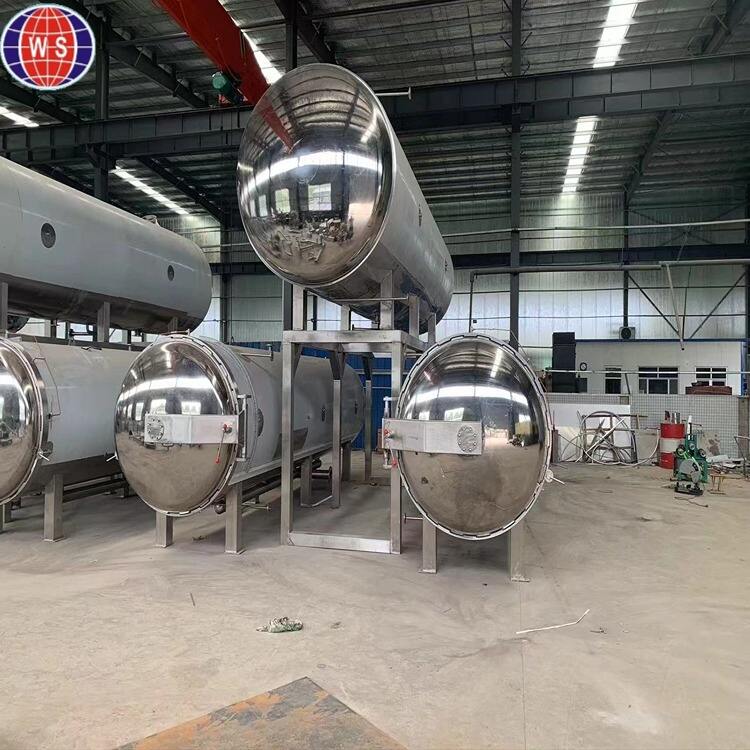

The hot water returning sterilizer (Retort Sterilizer/Autoclave) is designed for high-temperature short-time (HTST) sterilization of various packaged foods. It consists of a processing pot, hot water pot, valves, pumps, connecting pipes, and a PLC-based touch screen control system. Using high-pressure high-temperature hot water as the medium, it ensures rapid and uniform heating through internal food rotation, significantly shortening sterilization time while maintaining product quality. Suitable for a wide range of packaging types, it is an efficient and reliable solution for modern food processing.
Working Principle
The equipment operates by circulating high-temperature hot water under pressure throughout the sterilization pot. The process begins by loading packaged products into sterilizing baskets. Heated water is sprayed evenly over the products while the system maintains precise control over temperature, pressure, and rotation speed via the PLC and touch interface. The continuous hot water recycling ensures consistent heat distribution, allowing rapid temperature rise and effective sterilization. After the holding period, the system cools the products under controlled conditions to prevent package damage. The entire process is automated, ensuring reproducibility, safety, and efficiency.
Application
Widely used for sterilizing foods packaged in compound thin film package, sausage coasting package plastic box package, tri-can package, can, glass bottle, plastic bag.
This system is especially suitable for manufacturers requiring high-capacity, continuous, and gentle sterilization that preserves food texture, flavor, and nutritional value.
Features
1、Returning way can avoid over heating the food around.
2、Temperature controlling system can swiftly automatically control according the different features of the package.
3、Pressure controlling system matches the standard pattern automatically adjust pressure according to different conditions,so to avoiding distortion and destroy of the container, fit to increase the production.
4、Production and quality management can goes effectively by analyzing and checking T-t and P-t record.
5、The main body of the boiler and the touching surface to the material all adopts high quality stainless steel, up to the food sanitary
demands.
Specifications
| Model | RS-720 | RS-1200 | RS-2200 |
| Diameter of sterilizing pot | φ 1100mm | φ 1200mm | φ 1200mm |
| Length of sterilizing pot | 2400mm | 2900mm | 3800mm |
| Number of sterilizing basket | 2 | 3 | 3 |
| Work pressure | ≥0.35MPa | ≥0.35MPa | ≥0.35MPa |
| Sterilizing temperature | ≤ 137℃ | ≤ 137℃ | ≤ 137℃ |
| Heating steam pressure | ≥0.6MPa | ≥0.6MPa | ≥0.6MPa |
| Hot water recycling spraying volume | 15t/h | 25t/h | 40t/h |
| Condesed air pressure | 0.7MPa | 0.7MPa | 0.7MPa |
| Size | 3000×2200×3600 | 3600×2300×3800 | 4500×2300×3800 |
