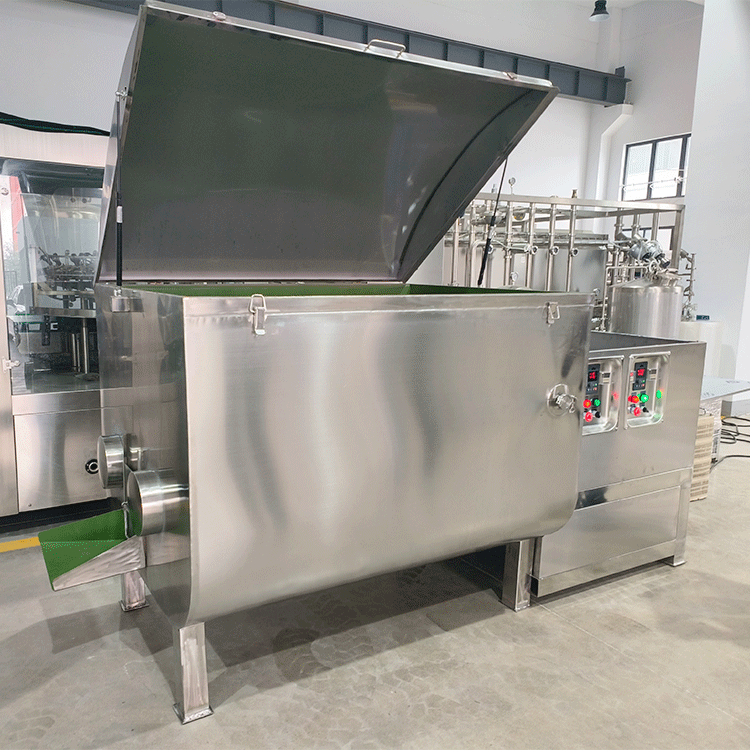

cheese stretching machine
It consists of container part, spiral motion system, lid opening system, discharging system, piping system, frame system, sheet metal decoration system, electrical control system, program control system, etc.
Heating method: electric heating, water heating, steam heating
- Main structure introduction
- Energy consumption parameters and interface
- Electrical parameters:
- Recommended Products
Main structure introduction
1.Pot body
Mainly composed of inner cylinder, outer cylinder, upper cover, sealing flange, sealing strip, pipe, etc., made of SUS304.

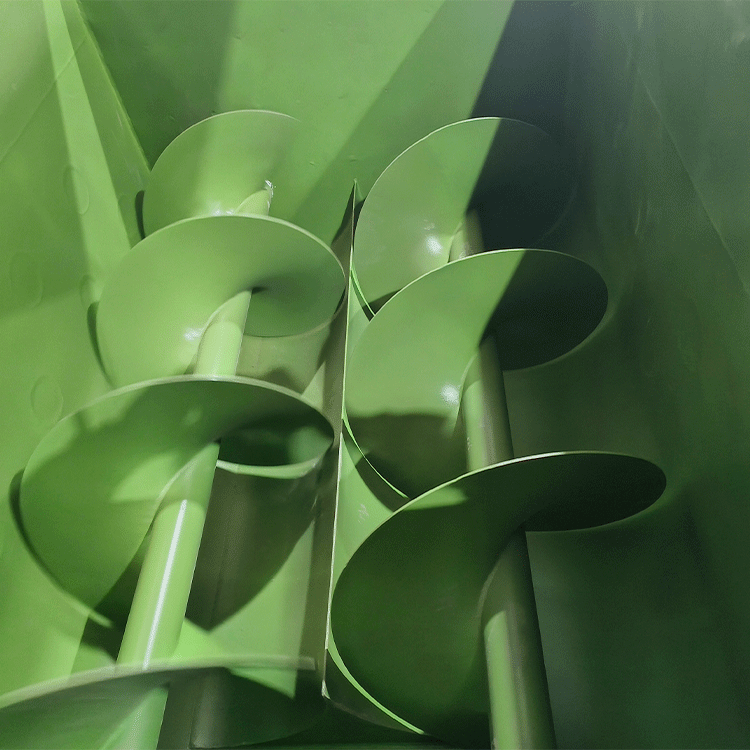

2.Double helix tensile structure
Material is SUS316 welded together and mirror polished.
3.Automatic opening
The automatic opening is composed of opening gas tank, bearing, support, support arm and other parts.
4.Automatic measurement
Weighing measurement is composed of weighing sensor.
5.Steam direct injection heating and jacket heating
The two systems of direct steam injection and jacket heating are steamed and controlled separately.
6.Vacuuming system
The system is composed of vacuum pump, pipeline, pressure sensor, etc.
7.Discharging system
The discharging is mainly composed of pneumatic discharging gate and receiving trough. The receiving trough is filled with 500L aggregate.
8.Automatic control system
The automatic control system is the nervous system of the machine. It is mainly composed of PLC, touch screen, power module, temperature sensor, pressure sensor, AC contactor, relay, travel switch, photoelectric switch, solenoid valve, compressed air pipeline, etc.
| Item | Parameter | Unit |
| Capacity (to upper edge of cooking pot) | 500 | L (liters) |
| Effective load | 300 | L (liters) |
| Net weight | 1850 | KG |
| Maximum vacuum degree of inner pot | —0.50 | MPa |
| Design temperature of inner pot | 0～100 | ℃ |
| Interlayer working temperature | 133 | ℃ |
| Dimensions (main unit) | 2530X1280X2550 (opening height 3600mm) |
（Length*Width*Height）mm |
Energy consumption parameters and interface
| Item | Parameters | Unit |
| Steam pressure | 0.2～0.4 | MPa |
| Steam diameter | DN40 | MM |
| Steam consumption | 400 | Kg/h |
| Pure water diameter | DN25 | MM |
| Compressed air pressure | 0.5～0.8 | MPa |
| Compressed air diameter | G1/4 | Inch |
| Exhaust diameter | DN65 | MM |
Electrical parameters:
| Item | Parameters |
| Main power supply | 380V, 50Hz |
| Control power supply | 24V DC 50W |
| Total power | 15Kw |
| Main motor power | 7.5*2 Kw |
