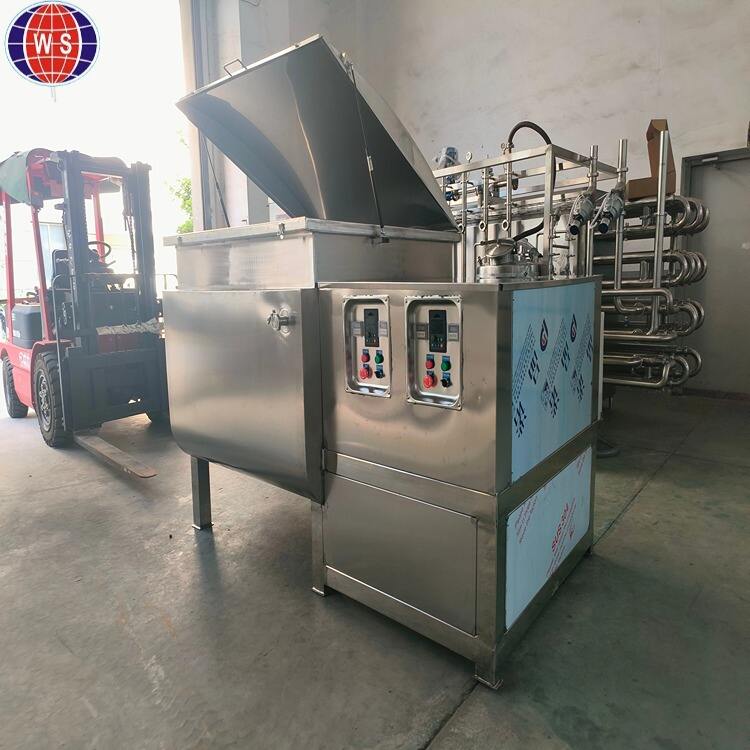

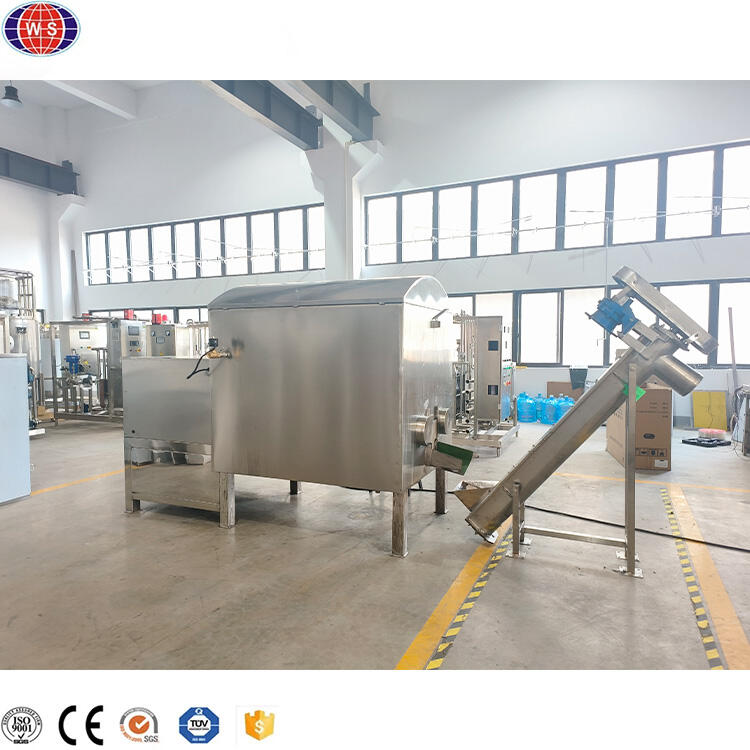

Industrial Automatic Cheese Stretching Machine
It consists of container part, spiral motion system, lid opening system, discharging system, piping system, frame system, sheet metal decoration system, electrical control system, program control system, etc.
- Description
- Energy consumption parameters and interface
- Recommended Products
Description
1. Pot Body
Primarily constructed from SUS304 stainless steel, the pot body consists of an inner cylinder, outer cylinder, top cover, sealing flange, sealing strip, and piping.
2. Double Helix Tensile Structure
Made of SUS316 stainless steel, this component is welded and mirror-polished for enhanced durability and smooth finish.
3. Automatic Opening Mechanism
This system includes an opening gas tank, bearings, supports, and support arms to enable automated operation.
4. Automatic Weighing System
Equipped with weighing sensors for precise measurement and control.
5. Steam Injection and Jacket Heating
Features two independent heating systems: direct steam injection and jacket heating, each with separate steam control.
6. Vacuum System
Comprises a vacuum pump, pipelines, and pressure sensors to maintain and monitor vacuum conditions.
7. Discharge System
Designed with a pneumatic discharge gate and a receiving trough capable of holding 500L of aggregate.
8. Automatic Control System
Serves as the central nervous system of the equipment. It includes a PLC, touchscreen interface, power module, temperature and pressure sensors, AC contactors, relays, limit switches, photoelectric sensors, solenoid valves, and compressed air pipelines for comprehensive automation.
Energy consumption parameters and interface
|
Item
|
Parameters
|
Units
|
|
Steam pressure
|
0.2～0.35
|
Mpa
|
|
Steam diameter
|
DN20
|
mm
|
|
Steam consumption
|
≤15
|
kg/h
|
|
Water pressure
|
0.2～0.35
|
Mpa
|
|
Water diameter
|
DN15
|
mm
|
|
Compressed air pressure
|
0.5～0.8
|
Mpa
|
|
Exhaust diameter
|
DN50
|
mm
|
|
Total power
|
10.5
|
KW
|
|
Main motor power
|
3*2
|
KW
|
|
Main motor speed
|
0～100
|
r/min
|
|
Extrusion pump
|
3
|
KW
|
