300-2000L Stainless Steel Storage Tanks for Water Liquid Food
Place of Origin: |
China |
Brand Name: |
Weishu |
Model Number: |
WS-CG |
Capacity |
300-20000L |
Raw materials: |
SUS304/SUS316L |
Certification: |
CE |
Minimum Order Quantity: |
1 |
Packaging Details: |
Wooden case/Film |
Delivery Time: |
20-45 days |
Payment Terms: |
TT |
- Description
- Structural characteristics
- Application
- Specifications
- Recommended Products
Description

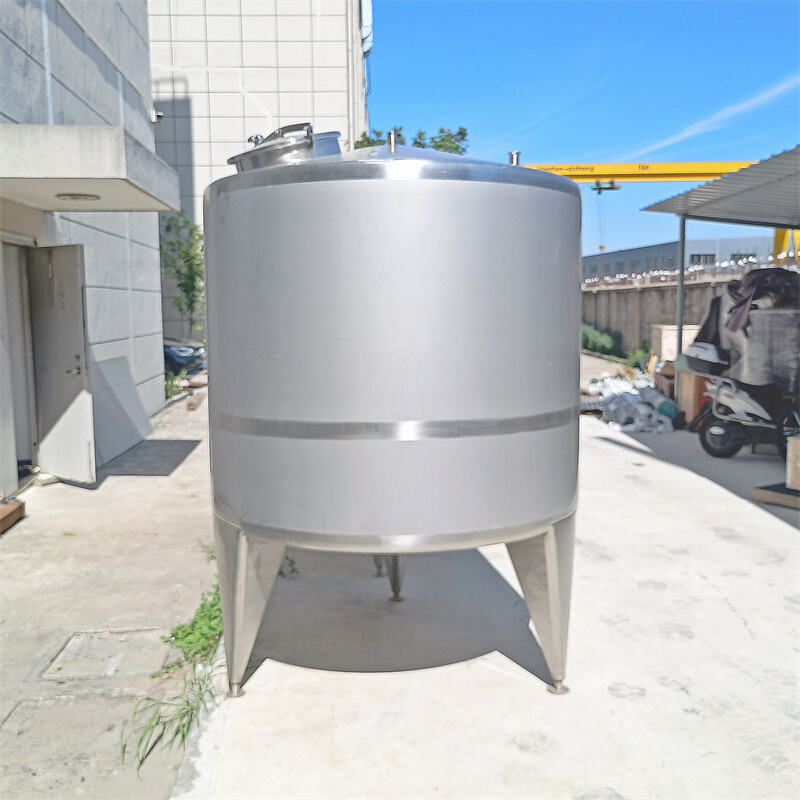

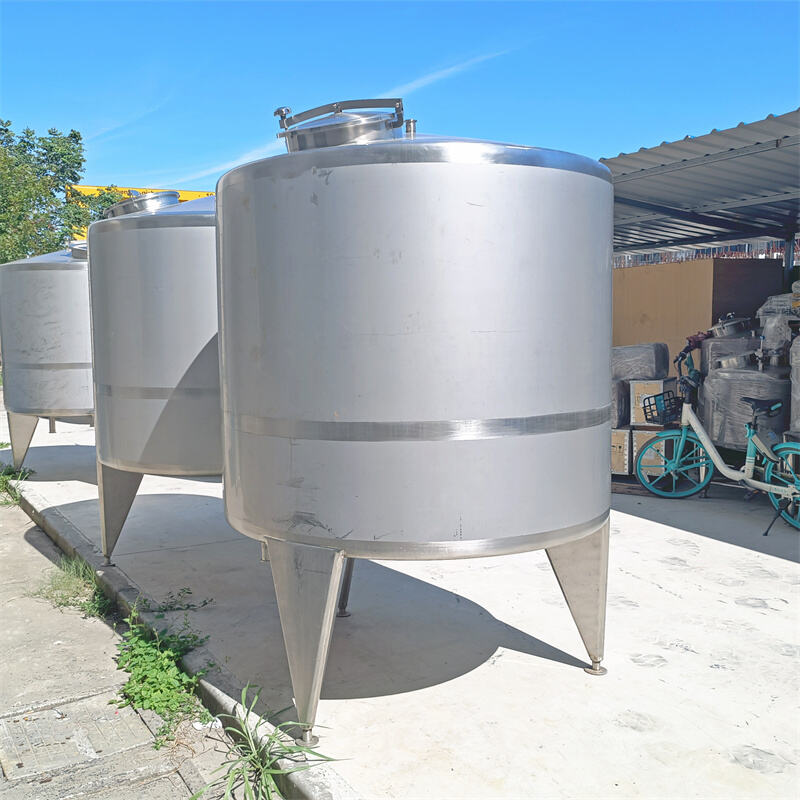

Stainless steel storage tank is a tank made of stainless steel as raw material, with a conical structure for the upper and lower heads. Compared with ordinary rotational molding storage tanks, stainless steel storage tanks can withstand higher pressures and are widely used in many high-pressure situations. At the same time, stainless steel storage tanks have a significant feature: excellent sealing performance, completely eliminating the invasion of harmful substances and mosquitoes in the air, ensuring that the liquid stored in the tank will not be contaminated by the outside world and will not breed red worms. Therefore, stainless steel storage tanks are mostly used for storing and transporting food and medicine, and are widely used in the brewing and dairy industries.
Structural characteristics
1. It can be cleaned online with CIP and sterilized with SIP.
2. Designed according to hygiene requirements, the structural design is highly user-friendly and easy to operate. Smooth transmission and low noise.
3. Suitable diameter to height ratio design, customized mixing device according to needs, energy-saving, good mixing and fermentation effects.
4. The surface of the inner tank body is polished (roughness Ra ≤ 0.4 μ m); all inlet and outlet ports, mirrors, manholes, and other process openings are connected to the welding points of the inner tank body using stretch flanging technology with rounded transitions, smooth and easy to clean without dead corners, ensuring the reliability and stability of the production process and meeting the requirements of "cGMP" and other specifications.
Application
Used for storing and transporting liquid foods such as food, medicine, dairy products, beverages, etc., and widely used in the brewing and dairy industries.
Specifications
|
Model |
Capacity (L) |
Overall Size (mm) |
Weight (kg) |
|
WS-CG-0.3 |
300 |
φ950x1200 |
90 |
|
WS-CG-0.5 |
500 |
φ1050x1450 |
110 |
|
WS-CG-0.7 |
700 |
φ1100x1650 |
130 |
|
WS-CG-1 |
1000 |
φ1300x1700 |
150 |
|
WS-CG-2 |
2000 |
φ1550x1950 |
180 |
|
WS-CG-3 |
3000 |
φ1750x2550 |
220 |
|
WS-CG-4 |
4000 |
φ1750x3000 |
270 |
|
WS-CG-5 |
5000 |
φ1950x3100 |
310 |
|
WS-CG-7 |
7000 |
φ2100x3600 |
380 |
|
WS-CG-8 |
8000 |
φ2200x3600 |
420 |
|
WS-CG-10 |
10000 |
φ2200x4300 |
480 |
|
WS-CG-20 |
20000 |
φ2300x6800 |
680 |
